Beverage Cans Juice Carbonated Drinks Can Filling Machine And Automatic Bottling Machine With Hot Tea Drink
Specifications:
1, Suitable bottles: PET, Tin-can, Aluminum can
2, Easy operation and maintaince simply
3, PLC control
4, Mitsubishi, Siemens,Omron
5, Certificate: CE, ISO9001-2008, QS
Machine process:
According to the actual situation in the domestic middle and large-sized canning fatories and beverage plants,our company has designed and manufactured a new generation filling and can sealing combination machine by referring to the most advanced same filling and can sealing products from abroad.The pneumatically controlled cover feeding without can body contact and the equal liquid level filling technology are adopted.The production adopts frequency conversion speed adjustment.More than 95% of the appearance materials are made of stainless steel to guarantee the requirements of beautiful appearance and sanitation of the whole machine.The steam jetting device can be allocated according to customer requirements to increase the vacuum degree in the can.
Technical Parameters
| Model(CGF) | 12-1 | 14-2 | 24-6 | 32-10 | 40-12 | 50-15 | 60-15 | 70-18 | 80-18 |
| Filling heads | 12 | 14 | 24 | 32 | 40 | 50 | 60 | 70 | 80 |
| Capping heads | 1 | 2 | 6 | 10 | 12 | 15 | 15 | 18 | 18 |
| Capacity(BPH) | 4000 | 6000 | 10000 | 12000 | 18000 | 22000 | 25000 | 28000 | 35000 |
| Motor power(KW) | 2.2 | 3.5 | 4.5 | 6.0 | 7.5 | 9.5 | 11.2 | 15.0 | 18.0 |
| Dimensions | 2100*1500*2200 | 2300*1700*2400 | 2800*2200*2400 | 2900*2200*2500 | 3600*2700*2850 | 5300*3200*2850 | 5600*4500*2850 | 6000*4800*2850 | 6500*5000*2850 |
| Weight (KG) | 2000 | 2500 | 3500 | 5500 | 7500 | 9000 | 12000 | 15000 | 18000 |

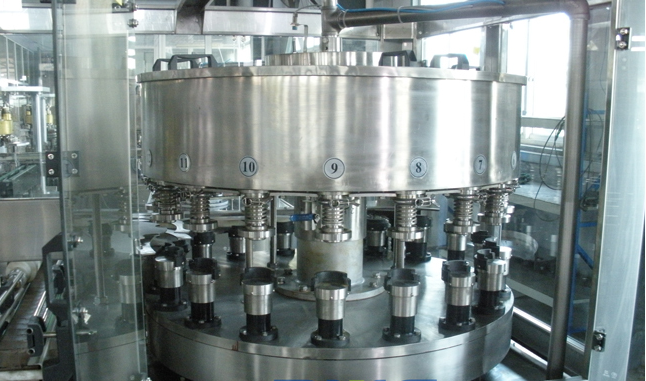

the filling machine photo:

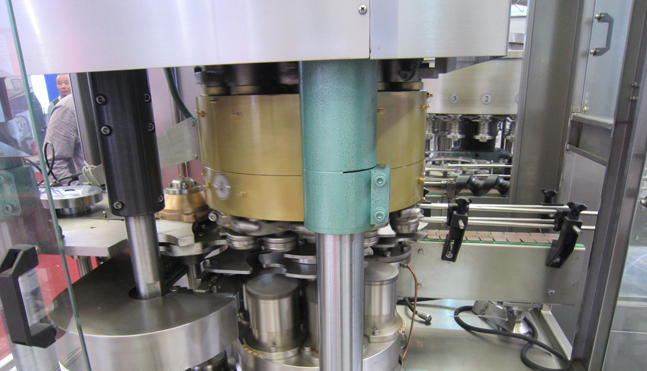

the capping part photo
Customer's service:
1.HIGEE company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. HIGEE company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3. HIGEE company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance service.
